Wall mounted stackable ESS with inverter

STBG51/100～400-NK25
Inverse control specification: 6.2KW photovoltaic inverter (high-frequency grid-connected) Battery specification: 51.2V/100Ah*N-layer battery type: lithium iron phosphate Rated power: 5KWh*N-layer rated power: 5KW Output voltage: 220V/AC ( comminicate)
Quantity
Contact Now

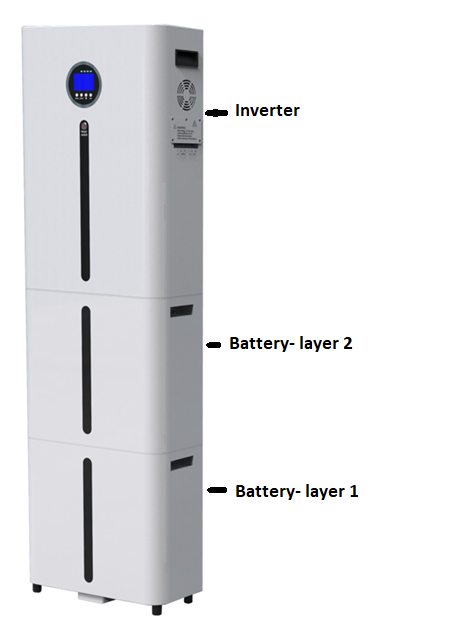

Wall mounted energy storage system with Inverter

Battery Cell

High-safety LiFePO4 battery cell. High energy density, long service life 5000 cycles.

All in one ESS

6.2KW Inverter included.

Scalable, Stackable, Home Energy Storage battery.  Fit for multi-scenario application.

Scalable for cost savings.
Supports 4-cluster parallel,5kWh-20 kWh energy range.
Installed in House, restaurants, warehouses, farms and more.

Safe & reliable

Overcharge and overdischarge protection, charge and discharge overcurrent protection, short circuit protection.

High and low temperature protection, automatic sleep function.

The shell of galvanized sheet is anti-rust, strong and durable.

Battery model

STBG51/100-NK25

STBG51/200-NK25

STBG51/300-NK25

STBG51/400-NK25

Nominal Voltage

51.2V

51.2V

51.2V

51.2V

Capacity

100 Ah

200Ah

300Ah

400Ah

Dimensions,

mm

L464*W190*H680

L464*W190*H1080

L464*W190*H1480

L464*W190*H1880

Capacity,

KWH

5.12

10.24

15.36

20.48

Weight,KG

55

100

145

190

Efficiency

More than 95%

Serial Communication Interfaces

RS232, Wifi(optional)

Certification

CE,FCC,ROHS,UL,PSE,MSDS,UN38.3, IEC62919
